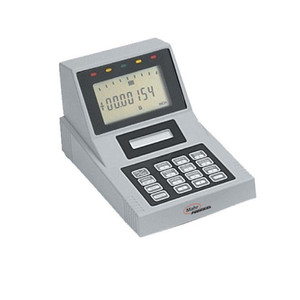

Mahr 2004004 AMP.832M,MAHR PROBES, BATTERY W/CHARGER "U.K."

(No reviews yet) Write a Review

$3,717.00

Brand: Mahr
SKU:: 2004004
UPC:
Availability:: DISCONTINUED WITHOUT A REPLACEMENT, NO STOCK

Current Stock:

Description
0 Reviews

Description

Features

Dynamics - simultaneously computes the minimum, maximum, T.I.R., nominal and actual gage head signal for dynamic measurement capability.
Multi-Range - three selectable ranges in inch or metric units.
Message Center - display provides a simple "menu- driven" setup procedure in English, French or Spanish.
RS-232 Output - for communicating with Data Collection Devices.
Two Gage Head Input - Independent reading or for providing the capability of "summing" for diameter reading, matching clearances, runout and parallelism.
Angular units - selectable arc seconds or millirads for angular measurement applications (see Electronic Levels).
User selectable password for full lockout capability or individual key lockout in both setup and gaging modes.
Mahr Probe type using

Specification

	Measuring Range	Digital Resolution	Analog Minimum Grad.
Linear	±2mm/±0.100" ±.200 mm / ±.010" ±.020 mm / ±.001"	.001 mm / .0001" .0001 mm / .00001" .00002 mm / .000001"	0.1 mm / .005" 0.01 mm / .0005" .001 mm / .00005"
Angular	5 mrad / ±1000 arc sec.	.005 mrad / 1 arc sec.	.25 mrad / 50 arc sec.
	1 mrad / ±200 arc sec.	.0005 mrad / 0.1 arc sec.	.05 mrad /10 arc sec.
Auto Range	automatically selects the smallest range for the best resolution, in both linear and angular units
Repeatability	±1 digit
Calibration Accuracy	±1 digit
Linear Error	less than .025% of full scale
Response Time	42 msec.
Thermal Stability	.01% /C x full scale
Temperature Range: At Specified Accuracy	20°C / 68°F ±.2°C
Operating	5° to 45°C / 40° to 110°F, with a temperature coefficient of .02% change/°C x full scale range.
Storage	0° to 60°C / 0° to 140°F
Digital I/O	five TTL opto-isolated outputs
Data Output Analog Output	RS-232, transmits Channels A, B, or both, units, and tolerances ±5 VDC full scale for displayed value signal
Measuring Modes	Actual, Minimum, Maximum, T.I.R., Nominal
Tolerance Indicators	five LEDs
Weight	3.5 lbs. / 1.58 kg
Dimensions	168 mm w x 254 mm d x 143 mm h / 6.63" w x 10" d x 5.63" h
Gage Head Display	A, B or both at any time
Auto Power Off	User selectable, up to 99 minutes of non-use
Power Requirements	rechargeable battery, 10 hour operation under full load: or 240 VAC 50-60Hz with power module (furnished with Amplifier)
Replacement Battery	EBY-1015 Ni-Cad rechargeable, 4.8v, 2.5 amp hours
Power	UK battery/240VAC charger
