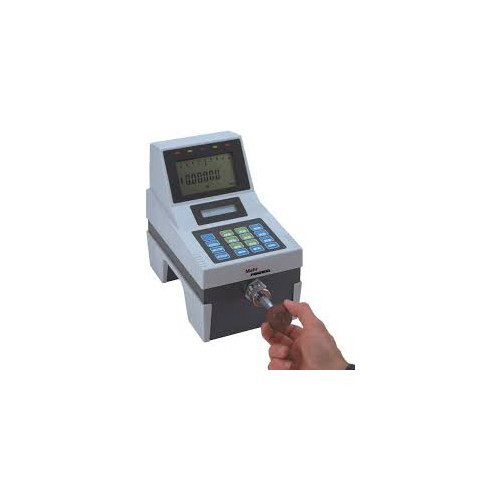

Mahr 2004113 DIG. DIMENSIONAIR, 832,1 CHAN, LOW MAG, 4 JET, "ROW"

(No reviews yet) Write a Review

$3,895.50

Brand

SKU:

2004113

Availability:

In Stock

Description

Compact length measuring instrument Millimar 832 PE/F1

Compatibility: Federal

Magnification: 1260:1, 2500:1, 5000:1

Inputs for pneumatic measuring equipment: 1

Number of jets: 4

Data interface: RS-232C

Energy supply: 230 V / 50 Hz, Power source

Package contains: power source, supply hose AHO-2, adapter for pneumatic plug gages, Federal compatible

Features:

Digital and analog display in one unit. Large, high-contrast digital display of the exact deviation from zero and analog display of measurement-related information
 With its fixed ratio and controlled compressed air supply, the digital Dimensionair is a sturdy, reliable system for manufacturing environments.
Only one standard needed for zero offset; the instrument is precalibrated for the correct ratio
Measuring ranges and resolutions for almost all measuring applications, including measuring equipment with 2, 3, 4 and 6 nozzles, air sensors and nozzle measuring probes.
Suitable for dynamic measurement
RS-232 output for communication with a data storage device, computer or printer, for statistical process control
Master deviation improved measurement with even more accurate automatic zero offset.

Millimar 832 PE/F1 \| Art.-Nr. 2004113
Display	Display mode A (or A and B for 2 channel models only)
Product type	832 PE/F1
Range of digital display µm	± 80 , ± 40 , ± 20
Range of digital display inch	± .003" , ± .0015" , ± .00075"
Resolution µm	0,2
Graduation mm	4 , 2 , 1
Graduation value inches	150 µ" , 75 µ" , 38 µ"
Tolerance display	5 LEDs
Compatibility	Federal
Dynamic functions	Max, Min, Max-Min
Statistical functions	Actual value, nominal value
Response time digital display	0.43 s
Error limit	+/- 1 digit
Data interface	RS-232C
Control outputs	5 TTL optocoupler outputs
Analog output	±5 VDC bei Maximalausschlag des gewählten Messbereichs für Signal ±A, ±B
Energy supply	230 V / 50 Hz , Power source
Operating temperature Min	5 °C
Operating temperature Max	35 °C
Product weight	5 kg
