Mahr 2033115 INDICATOR, INTEGRAL, MAXUM3 6PIN OUTPUT, 8MMX17, +-1.0MM

(No reviews yet) Write a Review

$842.10

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

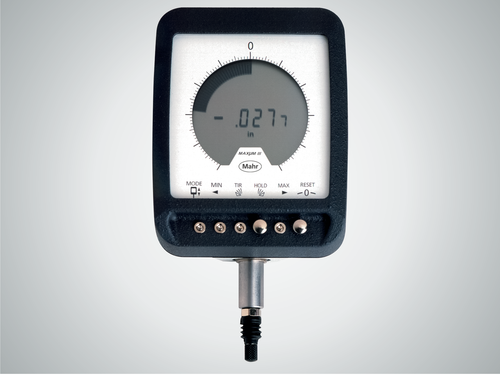

Inductive digital comparator Millimess Maxµm III

IP protection category: IP 54

Data interface: RS-232C, Digimatic, USB

Data output Maxµm: Data output 6 pin (E2)

Factory standard

Measuring span in mm: ±1 mm

Resolution: 0.0005, 0.001, 0.005

Resolution inches: .00002", .00005", .0001", .0005"

Clamping shaft: 8 mm x 17 mm

Package contains: interchangeable dials, battery, instruction manual

Features:

Large, high contrast numerical and scale display with unique display of the boxes to improve the visual perception of roundness and flatness tests and during reversing point searches for bore measurements
Replaceable dial plates
Inductive absolute measuring system
Metal housing with robust operating keys


Measuring range mm	±1
Product type	Maxµm III
Measuring range inches	± .040"
Measuring range 1 _beginning_ mm	-0.199 mm
Measuring range 1 _end mm	0.199 mm
Measuring range 1 _beginning_inch	-0.0199 inch
Standard	Factory standard
Measuring range 1 _end inch	0.0199 inch
Resolution	0.0005 mm , 0.001 mm , 0.005 mm
IP protection category	IP 54
Resolution (mm)	0.0005 mm
Resolution	0.00002 inch , 0.00005 inch , 0.0001 inch , 0.0005 inch
Resolution (inches)	2.0E-5 inch
Measuring force from	0.8 N
Measuring force up to	1.1 N
Range of analog display mm	± 5 , ± 25 , ± 50
Range of analog display inches	± .005" , ± .025" , ± .05"
Dimensions	a 17 mm \| b 36 mm \| c 63.5 mm \|
