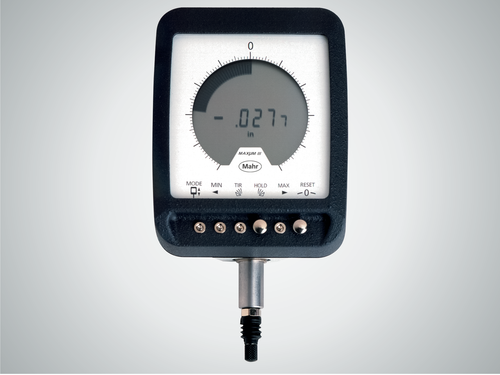

Mahr 2033122 INDICATOR, INTEGRAL, MAXUM3 10PIN OUTPUT, 3/8X.87, +-.100

(No reviews yet) Write a Review

$909.00

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Inductive digital comparator Millimess MaxÂµm III

IP protection category: IP 54

Data interface: RS-232C, USB

Data output MaxÂµm: Data output 10 pin (E2)

Factory standard

Measuring span in mm: Â±1.99 mm

Resolution: 0.001, 0.005

Resolution inches: .0001", .0005"

Clamping shaft: x

Package contains: interchangeable dials, battery, instruction manual

Features:

Large, high contrast numerical and scale display with unique display of the boxes to improve the visual perception of roundness and flatness tests and during reversing point searches for bore measurements
Replaceable dial plates
Inductive absolute measuring system
Metal housing with robust operating keys


Measuring range mm	Â±1.99
Product type	MaxÂµm III
Measuring range inches	Â± .100"
Standard	Factory standard
Resolution	0.001 mm , 0.005 mm
IP protection category	IP 54
Resolution (mm)	0.001 mm
Resolution	0.0001 inch , 0.0005 inch
Resolution (inches)	0.0001 inch
Measuring force from	0.8 N
Measuring force up to	1.1 N
Range of analog display mm	Â± 25 , Â± 50
Range of analog display inches	Â± .025" , Â± .05"
Dimensions	a 22 mm \| b 47 mm \| c 73 mm \|
