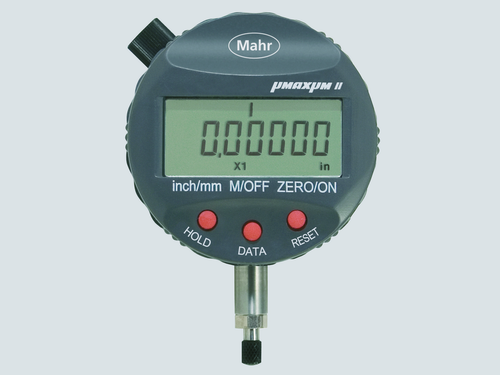

Mahr 2034203 UMAXUM II,+/-.04"RANGE,.375"D X1.5" STEM, ADVANCED, FLAT BK

(No reviews yet) Write a Review

$686.70

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Inductive digital comparator Millimess µMaxµm II

IP protection category: IP 54

Data interface: Digimatic, Opto RS-232C, USB

Data output Maxµm:

Factory standard

Measuring span in mm: ±1 mm

Resolution: 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01, 0.02

Resolution inches: .00001", .00002", .00005", .0001", .0002", .0005", .001"

Clamping shaft: x

Package contains: instruction manual, battery

Features:


Measuring range mm	±1
Product type	µMaxµm II
Measuring range inches	± .040"
Measuring range 1 _beginning_ mm	-0.5 mm
Measuring range 1 _end mm	0.5 mm
Measuring range 1 _beginning_inch	-0.02 inch
Standard	Factory standard
Measuring range 1 _end inch	0.02 inch
Resolution	0.0002 mm , 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm , 0.02 mm
IP protection category	IP 54
Resolution (mm)	0.0002 mm
Battery type	CR 2450N (3V Lithium)
Resolution	0.00001 inch , 0.00002 inch , 0.00005 inch , 0.0001 inch , 0.0002 inch , 0.0005 inch , 0.001 inch
Resolution (inches)	1.0E-5 inch
Measuring force from	0.8 N
Measuring force up to	1.1 N
Height of digits	8 mm
Dimensions	a 38 mm \| b 57.2 mm \| c 86.6 mm \|

For static and dynamic measurements
