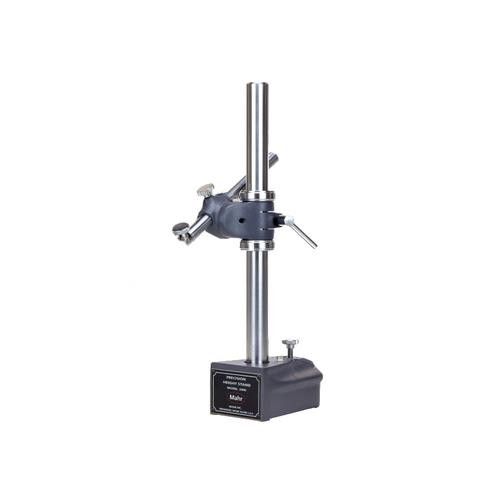

Description
Features with all optional accessories:
- A stable Height Stand fro electronic measurement
- Fine adjustment in the base allow easy operator set up, even at high magnification
- Up to 3.8 mm/0.15" adjistment when ams fully extended
- Collar has Teflon bearnings and metal to metal clamping
- Post is thermally heatisolated from the base
- Arm lock is independent of the pivot lock
- Uses vertical lug mounting
- EHE-2056 Lever gagehead mounts directrly to arm
- EHE-2048 Lever gagehead reuires and EAM-1071 adapter
- CP-83 Extra arm and swivel clamp assembly (allows mountinf two lever gage heads on one stand)
Specification
| Fine adjustment range | 3.8 mm (0.15") |
| Total Height | 257 mm (18") |
| Supprot arm reach (max.) | 254 mm (10") |
| Attachment | uses vertical Lug mounting |
