Mahr 2050594 SNAP GAGE, MEAS. 6-7", IDT-106 (22I) INDICATOR, LIFT LEVER
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 2050594 SNAP GAGE, MEAS. 6-7", IDT-106 (22I) INDICATOR, LIFT LEVER
$2,257.50
- Brand
- Mahr
- SKU:
- 2050594
- Availability:
- In Stock
Description
Features:
- Patented "Channel Lock" design ensures parallelism across the entire adjustment range
- Adjustable centering stop
- Large, square 15x15 mm hard metal measuring surface inclined to facilitate insertion of the testpieces
- All of the settings can be implemented using the enclosed Allen wrench
- Measuring probe retractable using lifting lever, contact-free insertion of workpieces therfore possible
- Other measuring surface geometries on request
Specification
| Product type | 301P-7 |
| Application range mm | 152.4 - 177.8 |
| Measuring span in mm | 0.5 mm |
| Measuring range in inch | 0.02 inch |
| Size of measuring surface in mm | 15,5 x 15,5 mm |
| Parallel error in µm | 4 µm |
| Measuring force | 18 N |
| Mounting hole for indicator | 0.375 inch |
| Dimensions | a 177.8 mm | b 303 mm | c 30 mm | d 213 mm | e 226 mm | |
 | |
Variety of applications for our products
0 Reviews Hide Reviews Show Reviews
Mahr
Mahr 2050518 SNAP GAGE, MEAS. 6-7", IDT-106 (22I) INDICATOR
$2,152.50
Description Features: Patented "Channel Lock" design ensures parallelism across the entire adjustment rangeAdjustable centering stopLarge, square hard metal measuring surface inclined to...
Mahr
Mahr 2050592 SNAP GAGE, MEAS. 5-6", IDT-106 (22I) INDICATOR, LIFT LEVER
$2,247.00
Mahr 2050592 SNAP GAGE, MEAS. 5-6", IDT-106 (22I) INDICATOR, LIFT LEVER
Mahr
Mahr 2050596 SNAP GAGE, MEAS. 7-8", IDT-106 (22I) INDICATOR, LIFT LEVER
$2,331.00
Description Features: Patented "Channel Lock" design ensures parallelism across the entire adjustment rangeAdjustable centering stopLarge, square 15x15 mm hard metal measuring surface...
Mahr
Mahr 2050527 SNAP GAGE, MEAS. 7-8", IDT-106 (22I) INDICATOR
$2,236.50
Description Features: Patented "Channel Lock" design ensures parallelism across the entire adjustment rangeAdjustable centering stopLarge, square hard metal measuring surface inclined to...
Mahr

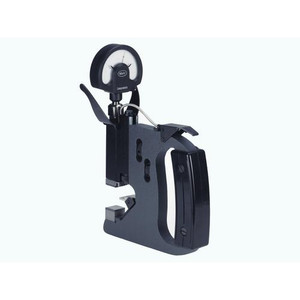

Mahr 2050516 SNAP GAGE, MEAS. 5-6", IDT-106 (22I) INDICATOR
