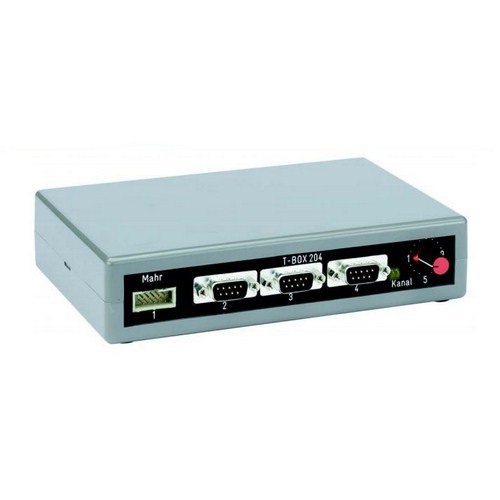

Mahr 4102565 T-BOX 204

Description

Mahr, 4102565, T-Box 204 Interface with 3 Multi-RS232C Input and 1 Digimatic Input

Features:

• Measuring data are transferred into keyboard codes, therefore suitable for any software with manual entry (as e.g. MS-Excel)
• No special driver software required
• Independent of operating system (DOS, Windows, OS/2, Unix)
• Measuring values processed individually or as a group
• Triggering of measured values directly on the measuring instrument or via optional foot switch
• Each Multi-RS-interface adjustable via setup-switch
• Termination character selectable via switch
• Power supply is from keyboard interface of the PC
• Scope of supply: 2 data connecting cables (Mini-DIN and standard 5 pins) to go between PC and T-Box
