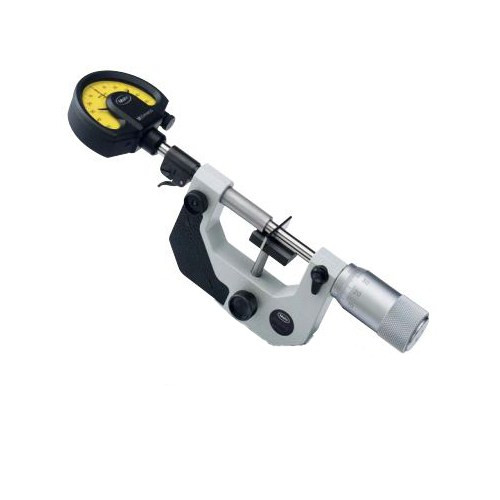

Mahr 4154030 40 TS METRIC BENCH MICROMETER WITH 1003, .001 MM COMPARATOR
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 4154030 40 TS METRIC BENCH MICROMETER WITH 1003, .001 MM COMPARATOR
$1,710.00
- Brand
- Mahr
- SKU:
- 4154030
- Availability:
- In Stock
Description
4154030, Precision bench micrometer 40 TS Micromar
4154030 Include Only:
- Micrometer with .001 MM Comparator
- Instruction Manual
Features with all optional accessories:
- Operating and display units with satin chrome finish
- Rugged steel frame, can be inclined up to 45° from the sturdy base
- Retraction of the movable anvil ensures maximum wear resistance
- Height adjustable stop
- Constant measuring force
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide tipped
- Locking device
Application:
- Quick check of diameter of cylindrical parts (shafts, bolts, shanks)
- Thickness and length measurements
- Particularly suitable for exact series components
Specification
| Measuring range | 0 - 50 |
| Readings (µm) | 1 µm |
| Error limit µm | 2 µm |
| Error limit Ge (µm) | 1 µm |
| Parallel error in µm | 2 µm |
| Flatness in µm | 0.2 µm |
| Spindle diameter | 7.5 mm |
| Spindle thread pitch | 0.5 mm |
| Dial color | Yellow |
| Type of dial face | 50-0-50 |
