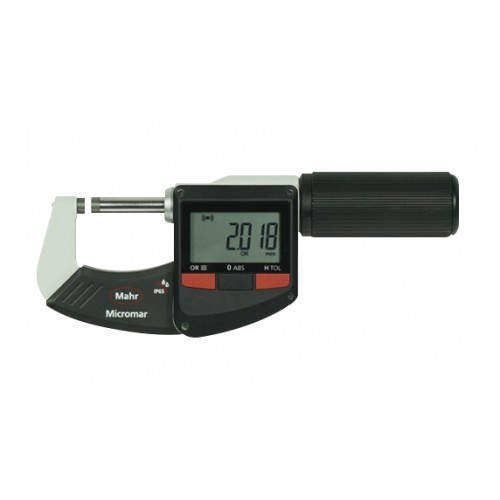

Mahr 4157020 40 EWR-L [17] Dig. Micrometer 0-25mm , cpl.
(No reviews yet)
Write a Review
![Mahr 4157020 40 EWR-L [17] Dig. Micrometer 0-25mm , cpl.](https://cdn11.bigcommerce.com/s-6sbwq2o2/images/stencil/500x659/products/326768/374450/4157020__89685.1660048906.jpg?c=2 "Mahr 4157020 40 EWR-L [17] Dig. Micrometer 0-25mm , cpl.")
Write a Review
Mahr
Mahr 4157020 40 EWR-L [17] Dig. Micrometer 0-25mm , cpl.
$540.75
- Brand
- Mahr
- SKU:
- 4157020
- Availability:
- In Stock
Description
Digital Micrometer Micromar 40 EWR-L
- Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
- Ideal for measuring thin metal foils without twisting and bending them
- Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
Features:
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Specification
| Micromar 40 EWR-L | Art.-Nr. 4157020 | |
|---|---|
| Standard | Factory standard |
| Measuring range mm | 0 - 25 |
| Measuring range inch | 0 - 1" |
| Material Contact surface | carbide |
| Resolution mm/inch | 0.001 / .00005" |
| Error limit µm | 2 µm |
| Battery type | CR 2032 (3V Lithium) |
| Parallel error in µm | 2 µm |
| Flatness in µm | 0.6 µm |
| Spindle diameter | 6.5 mm |
| Spindle thread pitch_mm | 5 mm |
| Measuring force (N) | 5 - 10 |
| Dimensions | a 24 mm | b 9.5 mm | c 32 mm | |
 | |
Variety of applications for our products
- Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
- Ideal for measuring thin metal foils without twisting and bending them
- Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
