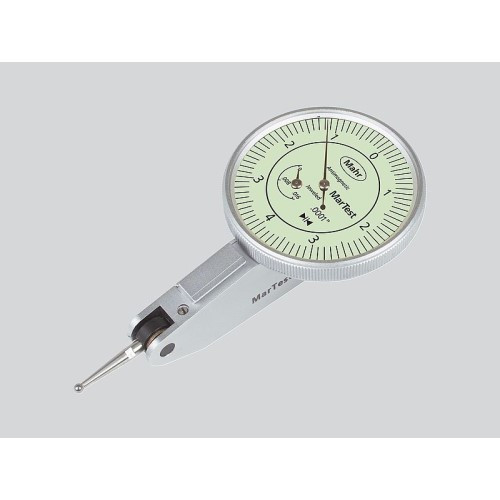

Mahr 4308980KAL 801 SRM Test indicator MarTest, w. c.

(No reviews yet) Write a Review

$342.95

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Test indicator MarTest 801 SRM

Factory standard

Measuring range mm: ± .008"

Graduation value inches: .0001''

Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8

Features:

High contrast dial face, sealed with an O-Ring
Mineral glass viewing panel for best protection:
- against scratching or damage caused by hot shavings
- optimal resistance to solvents
Matt chrome-plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensuring infallible readings
Ball-bearing mounted double lever
Overload protection thanks to friction clutch


Product type	801 SRM
Measuring range inches	± .008"
Standard	Factory standard
Type of dial face	4-0-4
Pointer rotation (inches)	.008"
Deviation range fe (inches)	.00012"
Total deviation range fges (inches)	.0002"
Measuring value hysteresis fu (inches)	.00012"
Partial measuring range ft (µm)	8.0E-5 µm
Partial measuring range ft (inches)	.00008"
Repeatability fw (inches)	.0001"
Measuring force	0.15 N
Scale diameter (inches)	1.5"
Dial color	Green
Dimensions	a 40.5 mm \| c 13.6 mm \| d 17.8 mm \| e 75 mm \| f 99 mm
