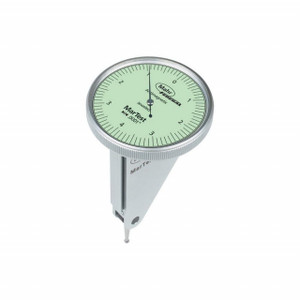

Mahr 4308985 801 SGE, MARTEST, .00005" RES, +/-.004" RANGE, 1.5" DIAL

(No reviews yet) Write a Review

$208.05

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Test indicator MarTest 801 SGE

Factory standard

Measuring range mm: ± .004"

Graduation value inches: .00005"

Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a3/8

Features:

High contrast dial face, sealed with an O-Ring
Mineral glass viewing panel for best protection:
- against scratching or damage caused by hot shavings
- optimal resistance to solvents
Matt chrome-plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensuring infallible readings
Ball-bearing mounted double lever
Overload protection thanks to friction clutch


Product type	801 SGE
Measuring range inches	± .004"
Standard	Factory standard
Type of dial face	4-0-4
Pointer rotation (inches)	.008"
Deviation range fe (inches)	.0004"
Total deviation range fges (inches)	.0005"
Measuring value hysteresis fu (inches)	.00012"
Partial measuring range ft (inches)	.0002"
Repeatability fw (inches)	.0001"
Measuring force	0.15 N
Scale diameter (inches)	1.5"
Dial color	Green
Dimensions	a 40.5 mm \| c 13.6 mm \| d 17.8 mm \| e 75 mm \| f 99 mm
