Mahr 4332000 1010 MILLIMESS, 0.01 MM GRAD STANDARD, +/-.25 MM RANGE
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 4332000 1010 MILLIMESS, 0.01 MM GRAD STANDARD, +/-.25 MM RANGE
$293.55
- Brand
- Mahr
- SKU:
- 4332000
- Availability:
- In Stock
Description
Dial comparator Millimess 1010
Features:
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
Specification
| Measuring range mm | ±0.25 |
| Product type | 1010 |
| Standard | Factory standard |
| Graduation value mm | 0.01 |
| Type of dial face | 25-0-25 |
| Error limit Ge (µm) | 7 µm |
| Error limit Gges (µm) | 8 µm |
| Error limit Gt (µm) | 4 µm |
| Measuring value hysteresis fu (µm) | 2 µm |
| Repeatability fw (µm) | 2 µm |
| Measuring force | 1 N |
| Scale diameter | 50 mm |
| Dial color | White |
 | |
0 Reviews Hide Reviews Show Reviews
Mahr

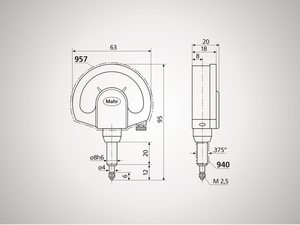

Mahr 4332005 1010 T MILLIMESS, 0.01 MM GRAD DRIP-PROOF
