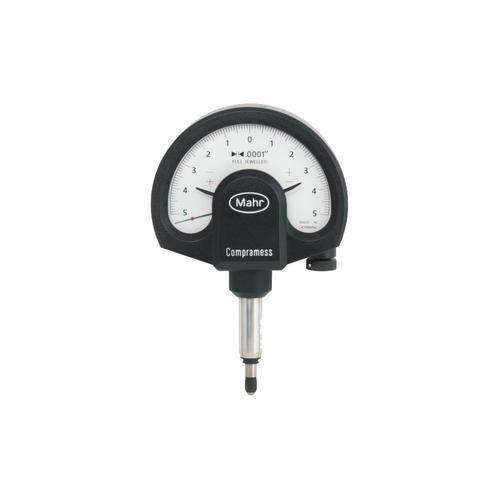

Mahr 4333900KAL 1004 Z/So Comparator ±.0050", .0001", w. c.

(No reviews yet) Write a Review

$393.30

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Dial comparator Millimess 1004 Z

Factory standard

Measuring range mm: ± .0050"

Graduation value inches: .0001''

Package contains: case, adapter bush 940, 8 mm to 3/8"

Features:

Large, high contrast dial face
Adjustable tolerance markers
Lockable fine adjustment screw
Shockproof movement
Mounting shank and measuring spindle are both made of hardened stainless steel
Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
Resistant to lateral forces (side play) acting on the measuring spindle
Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
Box type protective housing
Constant measuring force
Measuring spindle can be retracted with either a screw in cable release or with a lifting knob


Product type	1004 Z
Measuring range inches	± .0050"
Standard	Factory standard
Graduation value inches	0.0001 inch
Type of dial face	.005"-0-.005"
Error limit Ge in inches (text)	.0001"
Error limit Gges in inches (text)	.00012"
Error limit Gt in inches (text)	.00005"
Measuring value hysteresis fu (inches)	3.0E-5 inch
Repeatability fw (inches)	0 inch
Measuring force	1 N
Scale diameter	50 mm
Dial color	White
