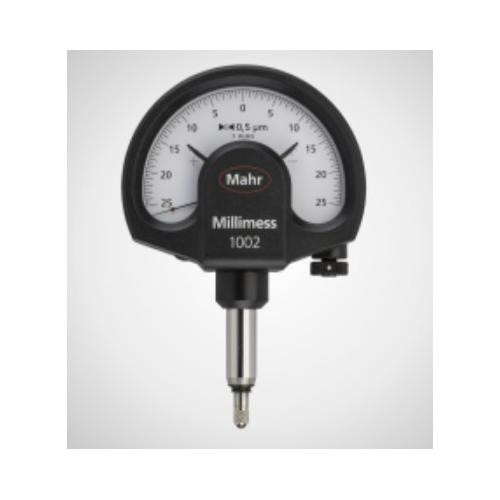

Mahr 4334102 1002 Dial Comparator Millimess ±25µm/0,5µm, with white scale
$702.05
- Brand
- Mahr
- SKU:
- 4334102
- Availability:
- In Stock
Description
Mahr, 4334102, 1002 Millimess Mechanical Dial Comparator 1 N Measuring Force
Features:
- Large, high contrast dial face
- Adjustable tolerance markers
- Lockable fine adjustment screw
- Shockproof movement
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Measuring spindle is mounted in a high precision ball guide for minimal hysteresis
- Resistant to lateral forces (side play) acting on the measuring spindle
- Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
- Box type protective housing
- Constant measuring force
- Measuring spindle can be retracted with either a screw in cable release or with a lifting knob
Specification
Measuring range _beginning_ µm | -25 µm |
measuring range_end_µm | 25 µm |
Readings (µm) | 0.5 µm |
Error limit Ge (µm) | 0.5 µm |
Error limit Gges (µm) | 0.6 µm |
Error limit Gt (µm) | 0.4 µm |
Hysteresis fu (µm) | 0.3 µm |
Repeatability fw (µm) | 0.3 µm |
Measuring force | 1 N |
Type of dial face | 25-0-25 |
Scale diameter | 50 mm |
Dial color | white |
