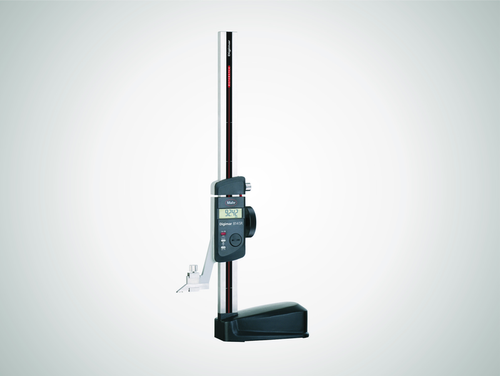

Mahr 4426101 814 SR Digital Height Gage 600mm/24"
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 4426101 814 SR Digital Height Gage 600mm/24"
$1,500.00
- Brand
- Mahr
- SKU:
- 4426101
- Availability:
- In Stock
Description
Features:
- Up to 3 yearsÂ’ battery life
- Travel speed 1.5 m/s (60”/s)
- MarConnect data output: optional
- USB
- OPTO RS232C
- Digimatic
- High contrast 12 mm high LCD display
- Sturdy, heavy-duty machine base
- Hardened and lapped contact surface which produces both a smooth and even movement
- Slide and rail are made of hardened stainless steel
- Handwheel for positioning and measuring
- Fine adjuster
- Locking screw
- Interchangeable measuring and scriber tips, carbide tipped
Specification
| Digimar 814 SR | Art.-Nr. 4426101 | |
|---|---|
| Measuring range mm | 0 - 600 |
| Measuring range inch | 0 - 24" |
| Resolution | 0.01 mm |
| Resolution | 0.0005 inch |
| Error limit inches | .0020" |
| Error limit µm | 50 µm |
| Error limit inches | 0.002 inch |
| Product weight | 8 kg |
| Standard | Factory standard |
| Data interface | Opto RS-232C , Digimatic , USB , wireless |
| Dimensions | a 62 mm | b 180 mm | c 35 mm | d 835 mm |
 | |
