Mahr 4450004 840 F SNAP GAGE 6-8"/150-200MM WOODEN CASE

(No reviews yet) Write a Review

$2,992.50

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

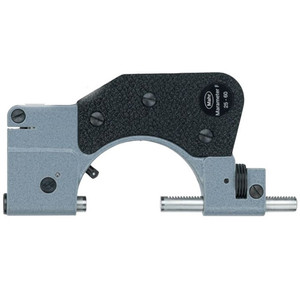

Indicating snap gage Marameter 840 F

Measuring range mm: mm

Package contains: flat contact point 903 (steel), instruction manual, wooden case, excludes indicator

Features:

Rugged, forged steel frame with heat insulators
Measuring spindle is mounted in long guideway with lever controlled retraction
Measuring spindle and anvil are made of hardened stainless steel with carbide tipped measuring faces
Adjustable centering stop for surface centering
Anvil spindle can easily be fine adjusted
Constant measuring force as a result of built-in spring, eliminating user influence
Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces in conjunction with carbide-tipped measuring faces


Product type	840 F
Application range mm	150 - 200
Measuring span in mm	2.5 mm
Parallel error in µm	2 µm
Flatness in µm	0.2 µm
Repeatability fw (µm)	1 µm
Measuring force	9 N
Dimensions	a 6.5 mm \| b 316 mm \| c 212 mm \| d 12 mm \| e 75 mm \| f 171 mm \| g 16 mm \| h 12 mm \| k 31 mm \| l 106 mm \|
