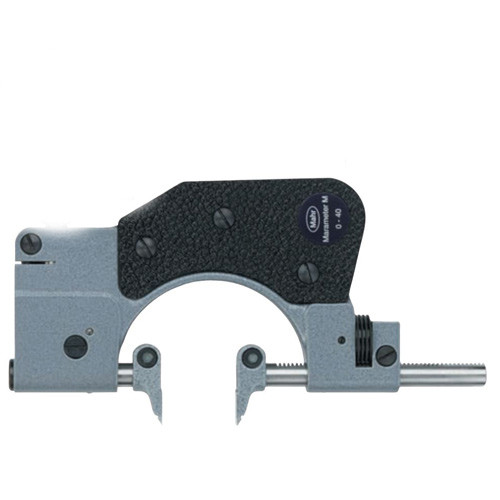

Mahr 4452000 840 FM INDICATING SNAP GAUGE 0-40 MM / 0-1.57",WOODEN CASE

(No reviews yet) Write a Review

$3,622.50

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Indicating snap gage Marameter 840 FM

Measuring range mm: mm

Package contains: flat contact point 903 (steel), instruction manual, wooden case, excludes indicator

Features:

Rugged, forged steel frame with heat insulators
Measuring spindle is mounted in long guideway with lever controlled retraction
Measuring spindle and anvil spindle made of hardened stainless steel; with extending carbide-tipped measuring jaws
Anvil spindle can easily be fine adjusted
Constant measuring force as a result of built-in spring, eliminating user influence
Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces in conjunction with carbide-tipped measuring faces


Product type	840 FM
Application range mm	0 - 40
Tooth spans	0.5
Measuring span in mm	2 mm
Size of measuring surface in mm	12 x 12 mm
Parallel error in µm	2 µm
Flatness in µm	0.5 µm
Repeatability fw (µm)	1 µm
Measuring force	7.5 N
Dimensions	a 14 mm \| b 140 mm \| c 68 mm \| e 60 mm \| f 77 mm \| g 13 mm \| h 13 mm \| k 25 mm \| l 34 mm \| m 12 mm \| p 12 mm \| t 11 mm
