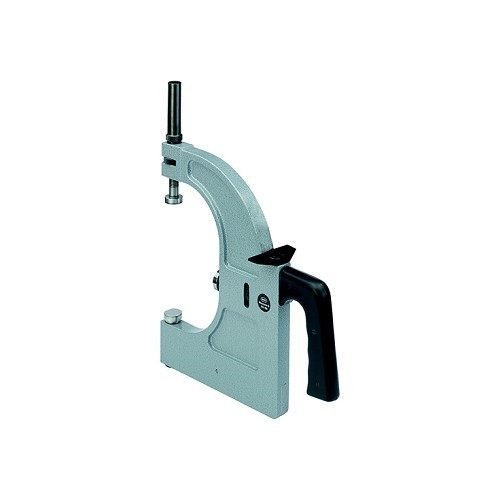

Mahr 4455001 840 FS INDICATING SNAP GAUGE 1.18"-2.36", W/ WOODEN CASE
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 4455001 840 FS INDICATING SNAP GAUGE 1.18"-2.36", W/ WOODEN CASE
$4,830.00
- Brand
- Mahr
- SKU:
- 4455001
- Availability:
- In Stock
Description
Indicating snap gage Marameter 840 FS
Features:
- Rugged, forged steel frame with heat insulators
- Both spindles are made of hardened stainless steel and mounted in long guideways
- Carbide tipped measuring faces slightly chamfered at the front to facilitate positioning
- Projects over width of frame for measurement of narrow registers or when measuring directly at shoulders
- Adjustable centering stop for surface centering
- High measuring accuracy Measuring movements are transferred exactly. Device weight rests on fixed measuring probe during the measurement.
- Numerical readability and evaluation of the measuring result
- Constant measuring force thanks to inbuilt measuring force spring. Measuring results are thus independent of personal sense of touch
- Display unit protected against impacts during measurements or storage of the device by laterally protruding bracket
Specification
| Product type | 840 FS |
| Application range mm | 30 - 60 |
| Measuring span in mm | 0.7 mm |
| Parallel error in µm | 3 µm |
| Flatness in µm | 0.5 µm |
| Repeatability fw (µm) | 1 µm |
| Measuring force | 13.5 N |
| Product weight | 0.9 kg |
| Dimensions | a 45 mm | b 51 mm | c 199 mm | d 18 mm | e 122 mm | f 196 mm | g 17 mm | h 15 mm | |
 | |
Variety of applications for our products
