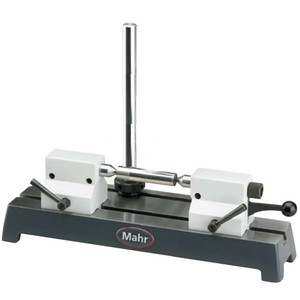

Mahr 4622203 BENCH CENTER, C.D. 0-450MM, C.H. 150MM, TYPE 818
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 4622203 BENCH CENTER, C.D. 0-450MM, C.H. 150MM, TYPE 818
$4,578.00
- Brand
- Mahr
- SKU:
- 4622203
- Availability:
- In Stock
Description
Features
Ideal for quick and accurate concentricity / run-out checksBench:
- Flatness of the surface is in accordance to DIN 876/1
- Two T-slots for Tailstock and / or Support Arm
Tailstock:
- Both Tailstocks can be relocated (slide into position)
- The Tailstock on the right side has a retractable (spring actuated)
- precision aligned center
- The Tailstocks have a peak height of 75 mm with a 90° prism for workpieces without a center, to a diameter of 20 mm (0.79")
Note: Not included indicating instrument
Specification
| Height of centers | 150 mm(6") |
| Distance between centers | 0 - 450 (0-18") |
| Base size | 700 x 180 mm(27.56 x 7.09") |
| Lateral and/or height difference of Tailstocks | 0.01 mm(0.00039") |
| T-slot width | 12H7 mm |
| Weight | 38 kg(83.77 lb) |
