Mahr 5313180KAL 1318 Inductive probe lever type, w. c.
(No reviews yet)
Write a Review
Write a Review
Mahr
Mahr 5313180KAL 1318 Inductive probe lever type, w. c.
$1,522.50
- Brand
- Mahr
- SKU:
- 5313180KAL
- Availability:
- In Stock
Description
Inductive probe Millimar 1318
Features:
- Dial test indicator inductive probe
- Flexible probe adjustment to contact surface
- Highly robust as the measuring system is recessed from the guide and mounting shaft
- Outstanding clamping properties
- Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Specification
| Millimar 1318 | Art.-Nr. 5313180KAL | |
|---|---|
| Measuring range from | -0.3 mm |
| Measuring range up to | 1 mm |
| Product type | 1318 |
| Distance of lower stop MAX | -0.37 mm |
| Distance of upper stop MAX | 1.6 mm |
| Measuring force (N) | 0,25 N +/- 0,05 N |
| Increase in measuring force | 0,04 N/mm |
| Sensitivity deviation | 0.5 % |
| Repeatability fw (µm) | 0.03 µm |
| Measuring value hysteresis fu (µm) | 0.5 µm |
| Linearity deviation within +/- 0,3 mm | 0.9 µm |
| IP protection category | IP 50 |
| Cable length | 1.5 m |
| Compatibility | Mahr LVDT |
 | |
0 Reviews Hide Reviews Show Reviews
Mahr
Mahr 5313180 1318 Inductive Probe lever type
$1,480.50
Mahr 5313180 1318 Inductive Probe lever typeFind all Mahr federal equipments in Testequipment USA at best price and in stock..Mahr Federal: 5313180 Dial test indicator inductive probeFlexible...
Mahr
Mahr 5323040 P2001M, MAHR TYPE, +/-0.5MM INDUCTIVE PROBE
$748.65
Mahr 5323040 P2001M, MAHR TYPE, +/-0.5MM INDUCTIVE PROBEFind all Mahr federal equipments in Testequipment USA at best price and in stock..Mahr Federal: 5323040 Compact designPlain bearing...
Mahr
Mahr 5324020 P2010MA, MAHR TYPE, +/-5MM INDUCTIVE PROBE W/VACUUM RTRCT
$857.85
Mahr 5324020 P2010MA, MAHR TYPE, +/-5MM INDUCTIVE PROBE W/VACUUM RTRCTFind all Mahr federal equipments in Testequipment USA at best price and in stock..Mahr Federal: 5324020 Models with or...
Mahr
Mahr 5324070 P2104MA, MAHR TYPE, +/-2MM INDUCTIVE PROBE W/VACUUM RTRCT
$857.85
Mahr 5324070 P2104MA, MAHR TYPE, +/-2MM INDUCTIVE PROBE W/VACUUM RTRCTFind all Mahr federal equipments in Testequipment USA at best price and in stock..Mahr Federal: 5324070 Models with...
Mahr

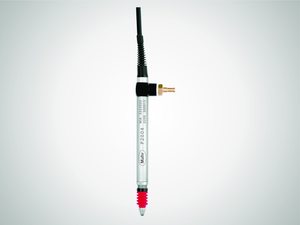

Mahr 5323020 P2004MA, MAHR TYPE, +/-2MM INDUCTIVE PROBE W/VACUUM RTRCT
