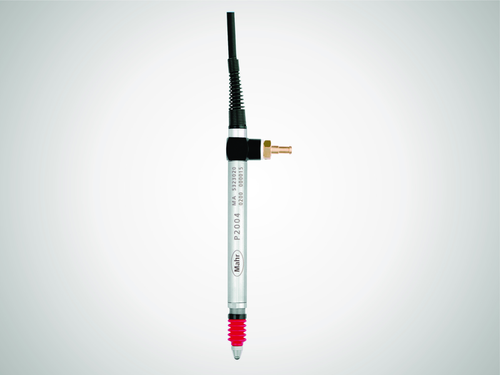

Mahr 5323020 P2004MA, MAHR TYPE, +/-2MM INDUCTIVE PROBE W/VACUUM RTRCT

(No reviews yet) Write a Review

$748.65

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Inductive probe Millimar P2004 MA

Compatibility: Mahr VLDT

Measuring range mm: ± 2 mm

Vacuum lifter

Measuring force (N): 0,75 N +/- 0,15 N

Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting

Features:

Models with or without pneumatic lifter or load
Measuring pin mounted in rotary stroke bearing
High linearity over the entire measuring range
Excellent electromagnetic shielding (EMC)
All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply
Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone

Millimar P2004 MA \| Art.-Nr. 5323020
Measuring range from	-2 mm
Measuring range up to	2 mm
Product type	P2004 MA
Distance of lower stop MIN	-2.2 mm
Distance of lower stop MAX	0 mm
Distance of upper stop MIN	2.2 mm
Distance of upper stop MAX	4.4 mm
Lifter / retraction	Vacuum lifter
Measuring force (N)	0,75 N +/- 0,15 N
Increase in measuring force	0,2 N/mm
Sensitivity deviation	0.3 %
Repeatability fw (µm)	0.1 µm
Measuring value hysteresis fu (µm)	0.5 µm
Linearity deviation within +/- 0,5 mm	0.4 µm
Linearity deviation within +/- 1,0 mm	1.5 µm
Linearity deviation within +/- 2,0 mm	3 µm
IP protection category	IP 64
Cable length	2.5 m
Working temperature	20 °C
Working temperature MIN	10 °C
Working temperature MAX	40 °C
Operating temperature Min	10 °C
Operating temperature Max	40 °C
Temperature coefficient	0.15 µm/°C
Compatibility	Mahr VLDT
Dimensions	a 88.7 mm \| b 28 mm \| c 21.3 mm \| d 6 mm \| e 9.2 mm \| f 8 mm \| h 14 mm \| i 26.5 mm \| j 3.6 mm \| k 9 mm \| l 8.3 mm \| m 12.5 mm \|
