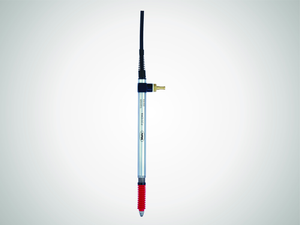

Mahr 5324020 P2010MA, MAHR TYPE, +/-5MM INDUCTIVE PROBE W/VACUUM RTRCT

Mahr 5324020 P2010MA, MAHR TYPE, +/-5MM INDUCTIVE PROBE W/VACUUM RTRCT

Find all Mahr federal equipments in Testequipment USA at best price and in stock..

Mahr Federal: 5324020

• Models with or without pneumatic lifter or load
• Measuring pin mounted in rotary stroke bearing
• High linearity over the entire measuring range
• Excellent electromagnetic shielding (EMC)
• All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply
• Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone

Specification

Measuring range from	-5 mm
Measuring range up to	5 mm
Product type	P2010 MA
Distance of lower stop MAX	-5.3 mm
Distance of upper stop MAX	5.3 mm
Lifter / retraction	Vacuum lifter
Measuring force (N)	0,75 N +/- 0,15 N
Increase in measuring force	0,1 N/mm
Sensitivity deviation	0.3 %
Repeatability fw (µm)	0.2 µm
Measuring value hysteresis fu (µm)	1 µm
Linearity deviation within +/- 2,0 mm	4 µm
Linearity deviation within +/- 5,0 mm	20 µm
IP protection category	IP 64
Cable length	2.5 m
Working temperature	20 °C
Working temperature MIN	10 °C
Working temperature MAX	40 °C
Operating temperature Min	10 °C
Operating temperature Max	40 °C
Storage temperature MIN	-10 °C
Storage temperature MAX	80 °C
Temperature coefficient	0.15 µm/°C
Compatibility	Mahr VLDT
Dimensions	a 125.7 mm | b 28 mm | c 34 mm | d 6 mm | e 9.2 mm | f 8 mm | h 14 mm | i 26.5 mm | j 3.6 mm | k 9 mm | l 8.3 mm | m 12.5 mm |
