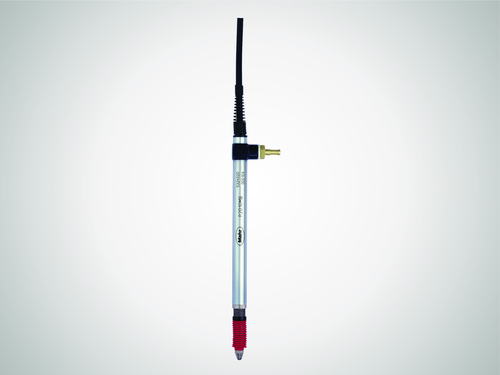

Mahr 5324030 P2010MB, MAHR TYPE, +/-5MM INDUCTIVE PROBE,PNEUMATIC PUSH

(No reviews yet) Write a Review

$857.85

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Inductive probe Millimar P2010 MB

Compatibility: Mahr VLDT

Measuring range mm: ± 5 mm

Compressed air retraction (max. 1 bar)

Measuring force (N): Depending upon air pressure

Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting

Features:

Models with or without pneumatic lifter or load
Measuring pin mounted in rotary stroke bearing
High linearity over the entire measuring range
Excellent electromagnetic shielding (EMC)
All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply
Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone

Millimar P2010 MB \| Art.-Nr. 5324030
Measuring range from	-5 mm
Measuring range up to	5 mm
Product type	P2010 MB
Distance of lower stop MAX	-5.3 mm
Distance of upper stop MAX	5.3 mm
Lifter / retraction	Compressed air retraction (max. 1 bar)
Measuring force (N)	Depending upon air pressure
Sensitivity deviation	0.3 %
Repeatability fw (µm)	0.2 µm
Measuring value hysteresis fu (µm)	1 µm
Linearity deviation within +/- 2,0 mm	4 µm
Linearity deviation within +/- 5,0 mm	20 µm
IP protection category	IP 64
Cable length	2.5 m
Working temperature	20 °C
Working temperature MIN	10 °C
Working temperature MAX	40 °C
Operating temperature Min	10 °C
Operating temperature Max	40 °C
Temperature coefficient	0.15 µm/°C
Compatibility	Mahr VLDT
Dimensions	a 125.7 mm \| b 28 mm \| c 34 mm \| d 6 mm \| e 9.2 mm \| f 8 mm \| h 14 mm \| i 26.5 mm \| j 3.6 mm \| k 9 mm \| l 8.3 mm \| m 12.5 mm \|
