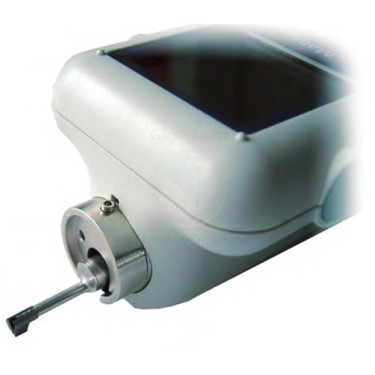

The 6111526 Mahr Pick-up PHT 6-350 5 μm/90 degree tip (Blue Tip)
Type: single-skid pick-up with spherical skid
Skid radius: in tracing direction R 25 mm, across R 2.9 mm
Contact point: 0.8 mm in front of the stylus
Measuring range: 350 μm
Measuring force: 0.7 mN
Specification: for flat surfaces, bores with a diameter larger than 6 mm, and a max. depth of 16 mm, grooves with a width larger than 3 mm
Stylus tip geometry as per EN ISO 3274, standard 5 μm/90°
