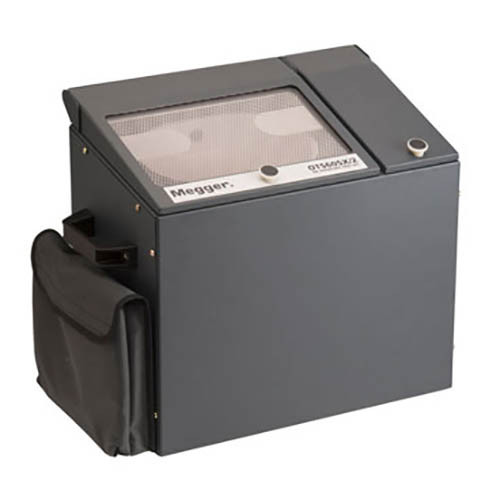

Megger 1008-225 Semi-Automatic Oil Test Set
$6,200.00
- Brand
- Megger
- SKU:
- 1008-225
- Availability:
- In Stock
Megger 1008-225 Offers
The semi-automatic oil test set is lightweight portable unit for field use.
Features
- Robust oil chamber lid, fully opening for easy access
- Simple, semi-automatic operation
- Automatic 1 minute timer for easy withstand testing
- 1ms HV switch off time eliminates damage to the oil samples
Megger 1008-225 Specifications
| Output Voltage | 0 to 60 kV rms |
| Test Frequency | 61,8 H |
| Transformer Rating | 500 VA |
| Output Disconnection | Within 1 ms of detection of breakdown |
| Operation | Semi automatic with 0,5, 2 or 3 kV/s selectable rate of voltage rise, Pause function with automatic 1 minute timer for Withstand testing |
| Measurement Accuracy | 2% ? 3 digits |
| Controls | Start, Pause, Stop, Ramp Rate select and Power On/Off switch |
| Temperature Range | Operating: 0 to 40?C Storage: -20 to +70?C |
| Humidity Range | Operating; 80% RH at 40?C Storage: 93% RH at 40?C, 95% RH at 25?C |
| Dimensions (H x W x D) | 380 x 401 (w/o handles at 40 mm each) x 260 mm |
| Weight | 17 kg |
| Cleaning | Wipe disconnected test set with a clean cloth dampened with soapy water or Isopropyl Alcohol (IPA) |
What's included with the Megger 1008-225
- 6320-233 (Spherical Electrodes for IEC 156)
- 6320-234 (Mushroom electrodes for VDE0370)
- 6111-356 (Vessel with Cylindrical Electrodes for ASTM D877)
- Megger 6132-009 Spacing Gauges (0.5-, 1.0-, 1.5-, 2.0-, 2.5-, 2.54-, and 4-mm)
- Megger 25424-860 power cord, unterminated
- Megger 25970-002 power cord, US plug
- Accessory pouch
- Instructions
