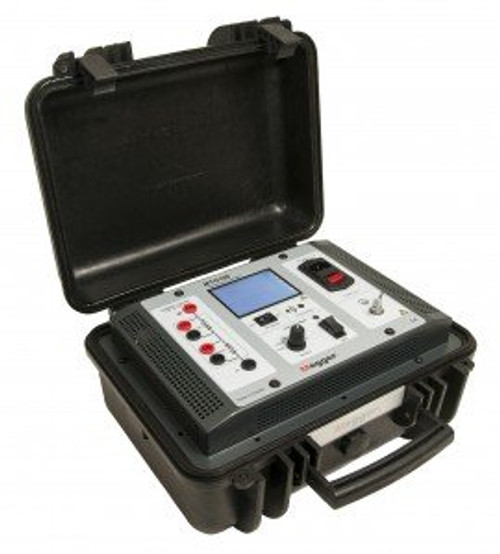

Megger BN-19000 Offers
Features
- Entry level transformer ohmmeter
- 2 channels with max 6 A current output
- ?0.25% measurement accuracy
- 48 V test voltage for fast saturation of transformers
- Multimeter type operation, intuitive and fast
- Safety through automatic, passive discharge circuitry
- True portability-compact size and low weight
- Single selector switch for test current and a single button to activate the test cycle
Applications
- To verify factory test readings
- As part of a regular maintenance program
- To help locate the presence of defects in transformers such as increased contact resistance in terminal connections and tap changers
Megger BN-19000 Specifications
| Operating Temperature | -4 to 122?F (-20 to 50?C) |
| Storage & Transport Temperature | -58 to 158?F (-50 to 70?C) |
| Humidity (Operating) | 0% to 90% RH, non-condensing |
| Mains Voltage | 100 to 240 V AC, 50/60 Hz |
| Input Power | 400 VA (max) |
| Display | 4", backlit, monochrome alphanumerical display |
| Measurment Range | 10 ?O to 30 kO |
| Resolution | Up to 4 digits |
| Dimensions (W x D x H) | 14.2 x 12 x 7.6" (360 x 304 x 194 mm) |
| Weight | 16 lbs (7.3 kg) excl. cables |
What's included with the Megger BN-19000
- Megger BN-19000 MTO106 Transformer Ohmmeter, 10 ?O to 30 kO
