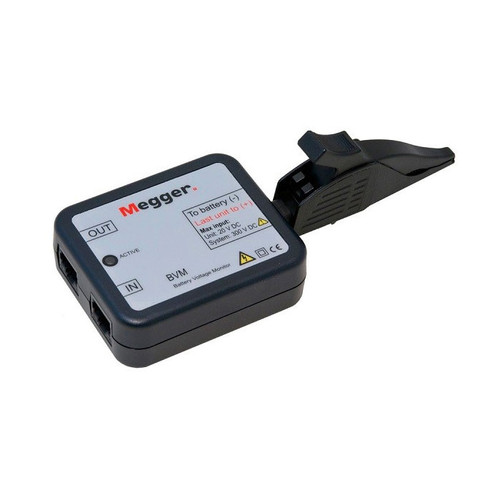

Megger BVM Battery Voltage Monitor (BVM, BVM300 and BVM600)
Megger’s BVM battery voltage monitors allow for capacity testing of industrial battery banks usually found in distribution sub-stations, telecoms installations and computer network UPS systems.
When connected into a circuit with a battery load unit such as the Megger TORKEL unit, the BVM enables the engineer to perform a completely automated battery bank capacity test, according to IEC test methods and NERC/FERC requirements.
The BVM is designed in modular form where one BVM device is used for each battery or "jar" in the string to be tested. One BVM for each battery connects to the next in a “daisy-chain” fashion, thereby providing easy and economical expandability to meet the testing requirements for small-to-large battery bank systems.
Select the most applicable kit from the drop down menu above:
- Megger BVM150 - set of 16 battery voltage monitors
- Megger BVM300 - set of 31 battery voltage monitors
- Megger BVM600 - set of 61 battery voltage monitors
Key features
- Automates battery voltage measurement during capacity tests
- "Daisy-chain" design allows expandability up to 120 units
- High accuracy and stability for precise data collection
- Integrates with TORKEL Win and PowerDB Test Data Management software
- Wide voltage range
- Easy set-up
