Description
This outside micrometer is an accurate and reliable device that offers you the following benefits:- Cut-away frame (behind anvil) for measurements in hard-to-reach places
- Ratchet stop delivers a constant measuring force.
Specification
| Inch-Metric: | Metric |
| Range: | 0 - 25 |
| Maximum Permissible Error J MPE: | ?1 ?m |
| Flatness: | 0,3 ?m |
| Parallelism: | 1 ?m |
| Digital/Analog: | Analog |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring spindle: | With spindle lock, ?6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?18 mm |
| Measuring force: | 5 - 10 |
| Delivered: | Including box, key, setting standard (from 25 mm upward), certificate of inspection (0-50 mm range) |
| Remarks: | Friction Thimble |
| Mass: | 180 |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 102-311 MIC, OUTSIDE, 0-25MM
$164.70
DescriptionThis outside micrometer is an accurate and reliable device that offers you the following benefits:Cut-away frame (behind anvil) for measurements in hard-to-reach placesRatchet stop...
Mitutoyo
Mitutoyo 102-707 MIC, OUTSIDE, 0-25MM, 0.001MM, R
$128.70
DescriptionA Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over...
Mitutoyo
Mitutoyo 102-301 MIC, OUTSIDE, 0-25MM, 0.01MM, RS
$124.20
DescriptionA Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve...
Mitutoyo
Mitutoyo 102-701 MIC, OUTSIDE, 0-25MM, 0.01MM, RT
$124.20
DescriptionA Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over...
Mitutoyo

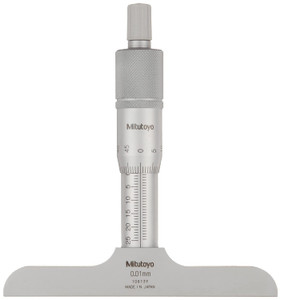

Mitutoyo 128-102 0-25MM DEPTH MIC BASE-100
