Description

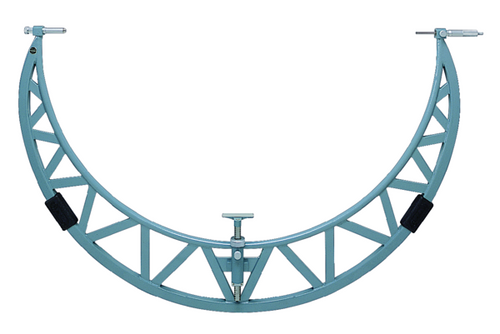

This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:
- The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
- The 50mm spindle stroke gives you extended range compared to standard spindle types.
- Anvil collars extend the measuring range even further.
- The setting standards supplied cover the whole measuring range.
Specifications
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Measuring spindle: | With spindle lock, ?8 mm, spindle pitch 0,5 mm |
| Range: | 1000 - 1200 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?21 mm |
| Graduation: | 0,01 mm |
| Spindle feed error: | 6 ?m |
| Flatness: | 1,3 ?m |
| Parallelism: | 14 ?m |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring force: | 5-10 N |
| Extension collar: | 50, 100 mm |
| Remarks: | With workpiece stop 100 mm adjustable |
| Delivered: | Including box, setting standards (2 or 4 pieces), adjustable stop (for models over 1000 mm range) |
| Mass: | 10 kg |
