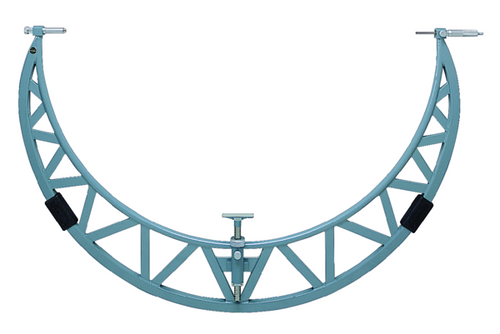

Description
This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:
- The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
- The 50mm spindle stroke gives you extended range compared to standard spindle types.
- Anvil collars extend the measuring range even further.
- The setting standards supplied cover the whole measuring range.
Specifications
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Measuring spindle: | With spindle lock, ø8 mm, spindle pitch 0,5 mm |
| Range: | 48 - 52 " |
| Scale: | Thimble and sleeve satin chrome finish, ø21 mm |
| Graduation: | 0,001" |
| Spindle feed error: | 0.0003 inch |
| Flatness: | 0,000052" |
| Parallelism: | 0,0006" |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring force: | 5-10 N |
| Extension collar: | 2" |
| Remarks: | With workpiece stop 100 mm adjustable |
| Delivered: | Including box, setting standards (2 pieces), adjustable stop (for models over 40" range) |
| Mass: | 11.4 kg |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 105-428 OMS1-44"P
$2,871.00
DescriptionThis Outside Micrometer comes with Extension Anvil Collars.It offers you the following benefits:The collars have a stable and rugged yet lightweight tube construction, and are ideal for...
Mitutoyo
Mitutoyo 105-432 OMS1-60"P
$3,960.00
Mitutoyo 105-432 OffersThe outside micrometer anvil extension collar has a setting standard supply that can cover the whole measuring range.
Features
The 50 mm spindle stroke gives you extended...
Mitutoyo
Mitutoyo 105-431 OMS1-56"P
$3,636.00
DescriptionThis Outside Micrometer comes with Extension Anvil Collars.It offers you the following benefits:The collars have a stable and rugged yet lightweight tube construction, and are ideal for...
Mitutoyo

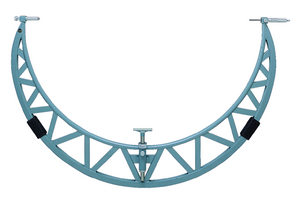

Mitutoyo 105-429 OMS1-48"P
