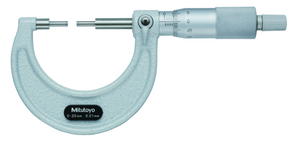

Mitutoyo 111-119 100-125/.01MM SPLINE MIC
$295.20
- Brand
- Mitutoyo
- SKU:
- 111-119
- Availability:
- In Stock
Description
A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.Features
| Digital/Analog: | Analog
|
| Inch-Metric: | Metric
|
| Range: | 75 - 100 mm
|
| Graduation: | 0,01 mm
|
| Maximum Permissible Error J MPE: | ±4 µm
|
| Flatness: | 0,3 µm
|
| Parallelism: | 3 µm
|
| Measuring face: | Carbide-tipped, micro-lap finish, stepped
|
| Anvil / Spindle: | Type A, D=3 mm
|
| Mass: | 500 g
|
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: | 5 - 10 N
|
| Delivered: | Including box, setting standard (from 25 mm upward), key
|
