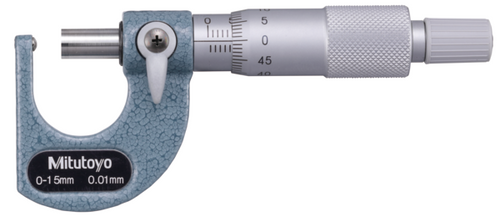

Mitutoyo 115-101 0-15/.01MM TUBE MICROMETER
$143.10
- Brand
- Mitutoyo
- SKU:
- 115-101
- Availability:
- In Stock
Description
This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.Features
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 0 - 15 mm |
| Graduation: | 0,01 mm |
| Maximum Permissible Error J MPE: | ?3 ?m |
| Measuring face: | Spindle and anvil: carbide-tipped, micro-lap finish (115-1xx, 115-2xx) spindle: carbide-tipped, micro-lap finish anvil: hardened steel (115-3xx) |
| Anvil / Spindle: | Spherical D=3 mm and R=2 mm/flat spimdle |
| Measuring spindle: | With spindle lock, ?6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?18 mm |
| Delivered: | Including box, setting standard (from 25 mm upward), key |
