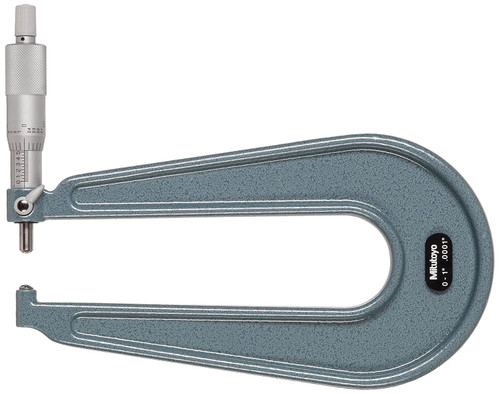

Mitutoyo 118-120 0-1/.0001" DEEP THRT. MIC S.A&S

Description

A Mitutoyo non-digital micrometer provided with spherically radiused spindle-end and anvil and a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Specification

Inch-Metric:	Inch
Range:	0 - 1
Graduation:	0,0001"
Maximum Permissible Error J MPE:	?0,0002"
Parallelism:	0,00012"
Digital/Analog:	Analog
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type C, spherical/spherical
Measuring spindle:	With spindle lock, throat depth ? 150 mm : ?6,35 mm throat depth =300 mm : ?8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ?18 mm
Measuring force:	3 - 8
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	740
