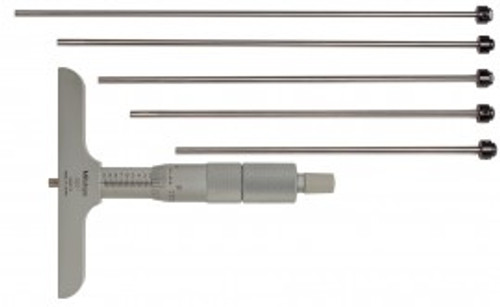

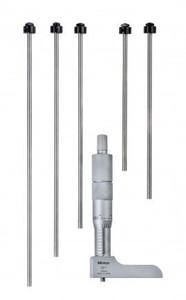

Mitutoyo 129-132, 0 - 6" X .001" Depth Micrometer, 4" Base
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 129-132, 0 - 6" X .001" Depth Micrometer, 4" Base
$250.25
- Brand
- Mitutoyo
- SKU:
- 129-132
- Availability:
- In Stock
Mitutoyo 129-132 Offers
Features
- Rod length can be adjusted in 1" increments
- ø0.15" interchangeable rods, with lapped measuring end, provide a wide measuring range
- Measuring rod clamps provide added measurement stability
Applications
- Measuring depth
Mitutoyo 129-132 Specifications
| Range | 0 to 6" |
| Accuracy | ±0.00015" |
| Units | Inches |
| Graduation | 0.001" |
| Flatness | Reference surface base: 0.00008" Measuring face: 0.000012" |
| Measuring Rod Diameter | 0.157" |
| Parallelism Between Reference Face and Measuring Rod Face | [0.00016+(.00004XR/2)], R=Maximum measuring range (inch) |
| Zero point Error of Rods | 0.0002" |
| Base Size | 4 x 0.63" |
What's included with the Mitutoyo 129-132
- Micrometer
- 6 x Rods
- Plastic Case
