Description

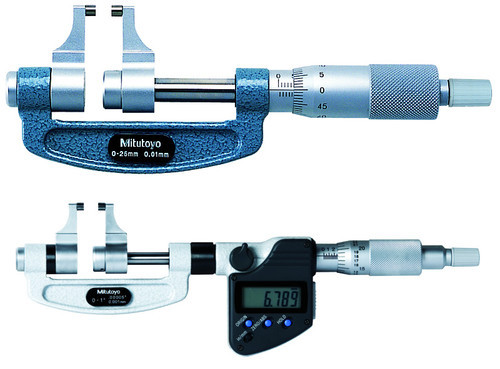

A Mitutoyo non-digital micrometer provided with caliper jaws to enable measurement in confined spaces. A ratchet stop guarantees repeatable measurement.Specification
| Inch-Metric: | Inch |
| Range: | 2 - 3 |
| Graduation: | 0,001" |
| Maximum Permissible Error J MPE: | ?0,00035" |
| Flatness: | 0,000012" |
| Parallelism: | 0,00012" |
| Digital/Analog: | Analog |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring spindle: | ?8 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ?18 mm |
| Measuring force: | 1 - 6 |
| Delivered: | Including box, setting standard (from 25 mm/1" upward), key |
| Mass: | 280 |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 143-103 50-75/.01MM O.MIC CAL.TYP
$477.00
DescriptionA Mitutoyo non-digital micrometer provided with caliper jaws to enable measurement in confined spaces. A ratchet stop guarantees repeatable measurement.Specification
Mitutoyo
Mitutoyo 143-101 0-25/.01MM O.MIC CAL.TYPE
$433.80
DescriptionA Mitutoyo non-digital micrometer provided with caliper jaws to enable measurement in confined spaces. A ratchet stop guarantees repeatable measurement.Specification
Mitutoyo
Mitutoyo 143-102 25-50/.01MM O.MIC CAL.TYP
$459.00
DescriptionA Mitutoyo non-digital micrometer provided with caliper jaws to enable measurement in confined spaces. A ratchet stop guarantees repeatable measurement.Specification
Mitutoyo
Mitutoyo 145-187 50-75/.01MM I.MIC CAL.TYPE
$281.70
DescriptionThe Caliper Jaw Inside Micrometer offers you the following benefits:Carbide measuring facesA setting standard (optional) is needed to accurately set the micrometer to the reference point...
Mitutoyo
Mitutoyo 123-127 Disc Micrometer Hardened Steel, 2 to 3?
$291.60
Mitutoyo 123-127 Specifications
Range
2 to 3"
Accuracy
±0.0003"
Flatness
0.00004"
Parallelism
0.0003"
Mass
250 g
Digital/Analog
Analog
Mitutoyo
Mitutoyo 167-143 STANDARD BAR 3 IN
$27.31
DescriptionA Mitutoyo precision length standard for accurately setting a micrometer at the start or end of its measuring range. Can also be used for setting other types of continuous-scale measuring...
Mitutoyo
Mitutoyo 104-148 900-1000/0.01MM O.MIC I/A
$1,593.00
Mitutoyo 104-148 Offers?The Mitutoyo 104-148 Outside Micrometer improves physical analysis of products in the workplace. It is designed to measure the thickness of objects that fit within the...
Mitutoyo
Mitutoyo 145-188 75-100/.01MM I.MIC CAL.TYPE
$291.60
DescriptionThe Caliper Jaw Inside Micrometer offers you the following benefits:Carbide measuring facesA setting standard (optional) is needed to accurately set the micrometer to the reference point...
Mitutoyo
Mitutoyo 145-186 25-50/.01MM I.MIC CAL.TYPE
$271.50
Description
The Caliper Jaw Inside Micrometer offers you the following benefits:
Carbide measuring faces
A setting standard (optional) is needed to accurately set the micrometer to the reference...
