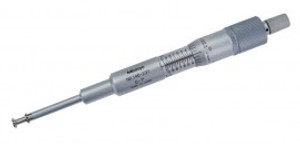

Mitutoyo 146-131 Groove Micrometer with rotating spindle, 0 to 1" 0.25"

Description

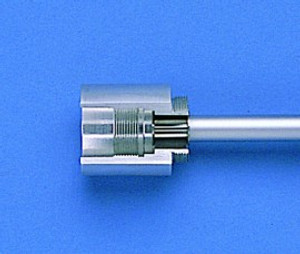

A Mitutoyo non-digital tubular micrometer equipped with concentric, disc-shaped anvils for making measurements inside holes, such as width, depth and location of grooves and projections. Separate graduations for inside and outside measurements avoid need for corrections for anvil thickness. A ratchet stop guarantees repeatable measurement.

Features:

• Available in Metric and Inch models
• Groove micrometer is available with a rotating and non-rotating spindle
• Measuring discs are constructed precision ground hardened steel, precision in our Japanese factory
• Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
• Hardened measuring discs resist wear for better accuracy over time
• Micrometer is precision balanced for easier handling and better readability
• Satin chrome finish on the sleeve and laser etched measurements on sleeve and thimble for easier reading
• Supplied in a plastic, fitted case.

Technical Data:

• Technology: Mechanical
• Ratchet/Thimble: Ratchet Stop
• Measuring Force: 0.7-1.2N

Specification
