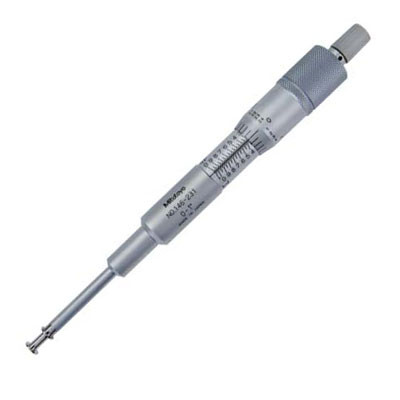

Mitutoyo 146-222 Groove Micrometer with non-rotating spindle, 0 to 25 mm, 12.7 mm

Product Description

146-222 Groove Micrometer – Non-Rotating Spindle Type Type: 0-25mm

The Mitutoyo 146-222 groove micrometer with non-rotating spindle has a flanged spindle and measuring discs constructed of hardened steel to precisely measure width, depth and location of grooves, inside/outside bores and tubes. The Mitutoyo groove micrometer’s two-direction ratchet stop provides a constant measuring force on the spindle to ensure accurate, repeatable measurements of groove depths and widths. The sleeve and spindle contain measurements for both inside and outside diameters laser etched for precise, easy reading.

Features:

• Available in Metric and Inch models
• Groove micrometer is available with a rotating and non-rotating spindle
• Measuring discs are constructed precision ground hardened steel, precision in our Japanese factory
• Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
• Hardened measuring discs resist wear for better accuracy over time
• Micrometer is precision balanced for easier handling and better readability
• Satin chrome finish on the sleeve and laser etched measurements on sleeve and thimble for easier reading
• Supplied in a plastic, fitted case

Mitutoyo 146-222 Specifications

Technical Data:

• Technology: Mechanical
• Ratchet/Thimble: Ratchet Stop
• Measuring Force: 0.7-1.2N
