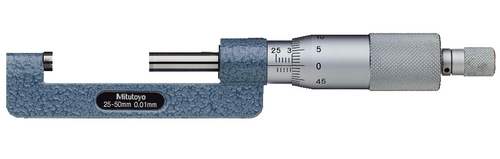

Mitutoyo 147-302 Hub Micrometer, 25 to 50 mm
$226.80
- Brand
- Mitutoyo
- SKU:
- 147-302
- Availability:
- In Stock
Description
A Mitutoyo non-digital micrometer for measuring hub thickness and shoulder width inside a hole. A ratchet stop guarantees repeatable measurement.
Specification
| Inch-Metric: | Metric |
| Range: | 25 - 50 |
| Graduation: | 0,01 mm |
| Maximum Permissible Error J MPE: | ±2 µm |
| Flatness: | 0,6 µm |
| Parallelism: | 3 µm |
| Digital/Analog: | Analog |
| Measuring face: | Carbide-tipped, micro-lap finish |
| Measuring spindle: | ø6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring force: | 5 - 10 |
| Delivered: | Including box, setting standard (from 25 mm upward), key |
| Mass: | 150 |
