Description
- Vernier scale in inch units for taking precise measurements
- Small size for measurements to 13mm
- Available with plain or clamp-nut stem for mounting in a fixture
- Satin chrome finish helps resist rust and reduce glare
- Lapped measuring face helps provide accuracy
Specification

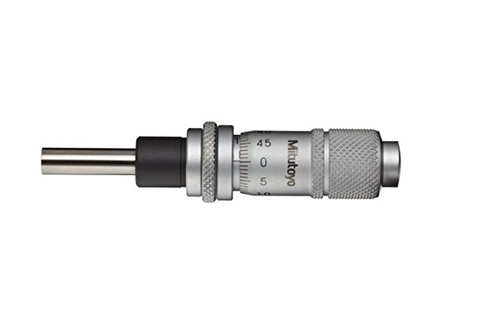

- Item: Micrometer Head
- Brand Name: Mitutoyo
- Resolution: 0.001"/0.01mm
- Range: 0 to 13mm
- Style: Clamp Nut, Flat Face
- Item Weight:1.23 ounces
- Gradient Spacing: 0.01 millimeters
- Measurement Accuracy: +/-0.002mm
- Measurement System: Mitutoyo
- UNSPSC Code:41110000
- Model Number: 148-103
