Description
This is a standard, small-sized micrometer head which offers you the following benefits:- Plain stem and a flat or spherical spindle end
- Hardened steel measuring surface
Features
| Digital/Analog: | Analog
|
| Inch-Metric: | Metric
|
| Range: | 0 - 13 mm
|
| Graduation: | 0,01 mm
|
| Maximum Permissible Error J MPE: | ±2 µm
|
| Spindle end: | Flat
|
| Spindle pitch: | 0,5 mm
|
| Stem Ø: | 9.5 mm
|
| Stem: | w/ clamp nut
|
| Fixture thickness for clamp nut: | 6 mm
|
| Measuring face: | Hardened steel (>60 HRC)
|
| Mass: | 45 g
|
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 148-133 MHS4-13F
$95.40
DescriptionThese micrometer heads have a very fine spindle feed of 0.1 mm/rev.They offer the following benefits:Small size micrometer heads with extremely fine pitch of 0.1 mm.Ideal for fine...
Mitutoyo
Mitutoyo 148-143 MIKE HEAD, MHS4-6.5FP
$143.10
DescriptionThese micrometer heads have a very fine spindle feed of 0.1 mm/rev.They offer the following benefits:Small size micrometer heads with extremely fine pitch of 0.1 mm.Ideal for fine...
Mitutoyo

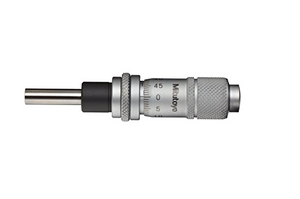

Mitutoyo 148-103 MHS2-13
