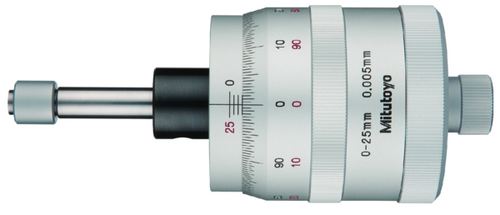

Mitutoyo 152-102 MIC HEAD, 0-25mm, FLAT CARBIDE T
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 152-102 MIC HEAD, 0-25mm, FLAT CARBIDE T
$134.10
- Brand
- Mitutoyo
- SKU:
- 152-102
- Availability:
- In Stock
Description
A Y-axis style bidirectionally graduated large-thimble, non-digital Mitutoyo micrometer head with plain Ø 18mm stem and heavy-duty Ì÷8mm spindle fitted with flat non-rotating tip.Features
| Digital/Analog: | Analog
|
| Inch-Metric: | Metric
|
| Range: | 0 - 25 mm
|
| Graduation: | 0.005 mm
|
| Maximum Permissible Error J MPE: | ±2 µm
|
| Spindle end: | Flat with non-rotating device
|
| Spindle pitch: | 1 mm
|
| Stem Ø: | 18 mm
|
| Stem: | Plain
|
| Special features: | For Y-axis
Bidirectional grad. |
| Measuring face: | Hardened steel (>60HRC)
|
| Mass: | 270 g
|
