Description
A high resolution, bidirectionally graduated large-thimble, rapid-feed non-digital Mitutoyo micrometer head with plain ? .709" stem and heavy-duty 8mm non-rotating spindle fitted with flat tungsten-carbide tipSpecifications
| Digital/Analog: | Analog
|
| Inch-Metric: | Inch
|
| Range: | 0 - 1 "
|
| Graduation: | 0.00001 in
|
| Maximum Permissible Error J MPE: | ?0,00005"/ ?0,00003"
|
| Maximum Permissible Error J MPE (Narrow): | ?0,00003"
|
| Spindle end: | Flat
|
| Stem ?: | 0.75 in
|
| Stem: | Plain
|
| Special features: | Bidirectional graduation
|
| Measuring face: | Carbide tipped
|
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 153-101 MICROMETER HEAD 0-15MM
$144.00
DescriptionA non-digital, high resolution Mitutoyo micrometer head with plain ??9.5mm stem and non-rotating spindle fitted with flat tungsten-carbide tip. Specifications Digital/A
Mitutoyo
Mitutoyo 153-301 MICROMETER HEAD 0-25MM
$1,233.00
DescriptionA high resolution, bidirectionally graduated large-thimble, rapid-feed non-digital Mitutoyo micrometer head with plain 18mm stem and heavy-duty ??8mm non-rotating spindle fitted with flat...
Mitutoyo

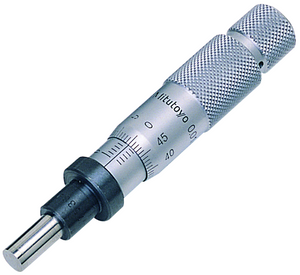

Mitutoyo 153-108 MICROMETER HEAD 0-.5"
