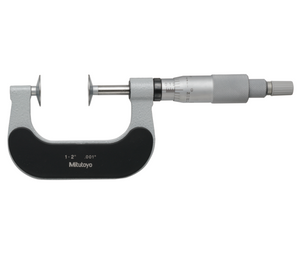

Mitutoyo 169-204 Series 169 Mechanical Disk Micrometer with Non-Rotating Spindle, 1 to 2"

Mitutoyo 169-204 Offers

When you need to measure the root tangent lengths of spur and helical gears, the Mitutoyo 169-204 Series 169 Mechanical Disk Micrometer with Non-Rotating Spindle has got you covered. Its non-rotating spindle prevents torque on your workpieces. The ratchet stop provides constant force.

Features

• Ideal for root tangent length measurements of spur and helical gears
• Non-rotating spindle design prevents torque on workpieces
• Emits constant measurement force via ratchet stop
• Fitted, plastic case provides protection
• Flatness: 0.00004" (1 &?igrave;m)
• Parallelism: 0.00016" (4 µm)
• 0.5 to 6 measureable module
• 0.001" graduation
• Standard bar included

Mitutoyo 169-204 Specifications

What's included with the Mitutoyo 169-204

• Micrometer
• Fitted Plastic Case
