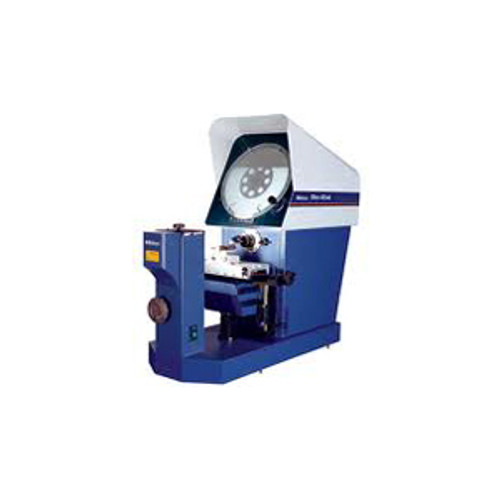

Mitutoyo 172-810-10A PH-A14 PROFILE PROJECTOR
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 172-810-10A PH-A14 PROFILE PROJECTOR
$6,990.00
- Brand
- Mitutoyo
- SKU:
- 172-810-10A
- Availability:
- DISCONTINUED WITHOUT A REPLACEMENT
Mitutoyo 172-810-10A Offers
Features
- Bench-top model that uses horizontal optical system
- Suitable for thread pitch measurements-blurred or distorted images will not be produced when workpiece is angled
- Inverted image on the day bright screen
- 14" (355.6 mm) diameter vernier protractor screen with solid line cross-hairs for easy alignment
- Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement
Mitutoyo 172-810-10A Specifications
| Projected Image | Inverted image |
| Protractor Screen | Diameter: 14" (355.6 mm) Screen material: Fine ground glass Reference line: Cross hair line Screen rotation: ±360°, fine feed and clamp Angle display: Vernier reading, Resolution: 2' |
| Magnification Accuracy | Contour illumination: ±0.1% or less Surface illumination: ±0.15% or less |
| XY Stage | Table travel: (X-axis) 8" (203.2mm) Table size: (X, Z) 16 x 6" (407 x 153 mm) Vertical travel: (Y-axis) 4" (101.6 mm) Resolution: 0.00005" (0.001 mm) Measuring Unit: Built in Linear scale Max. workpiece load: 100 lbs (45 kg) |
| Power Supply | 120 V AC, 50/60 Hz |
| Weight | 308 lbs (140 kg) |
What's included with the Mitutoyo 172-810-10A
- Profile Projector
- Lens
- Bulb
- Fuse
- 3 x Wrench
- Manual
