Description
Compact Type, Small Diameter - InchThis is a compact, inch dial indicator with a bezel ? 40 mm. It offers you the following benefits:
- It is ideal for use in applications where space is limited.
- Green limit markers are a standard accessory.
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Inch |
| Functions: | ANSI/AGD type |
| Range: | 0,125" " |
| Range per rev.: | 0.05" |
| Graduation: | 0,0005" |
| Accuracy: | ?0,0005" |
| Measuring force: | 0,4-1,4 |
| Error of indication one revolution: | ?0,0005" |
| Type: | ANSI/AGD Standard |
| Stem: | 9.52 mm / 0.375" |
| Contact point: | Carbide tipped, thread: 4-48UNF |
| Balanced dial: | Yes |
| Continuous dial: | Yes |
| Mass: | 70 g |
0 Reviews Hide Reviews Show Reviews
Mitutoyo

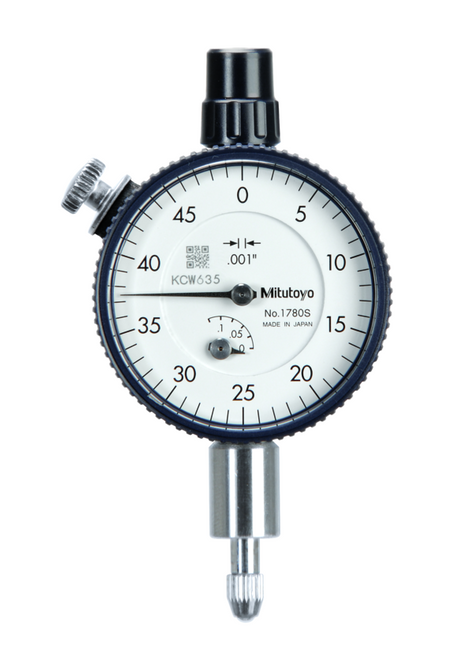

Mitutoyo 1780A,".001-.125INC2
