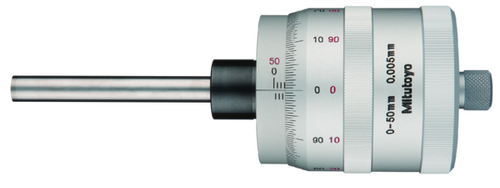

Mitutoyo 197-101 Series 197 Non-Rotating Spindle/Large Thimble Micrometer Head, 0 to 50 mm
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 197-101 Series 197 Non-Rotating Spindle/Large Thimble Micrometer Head, 0 to 50 mm
$471.60
- Brand
- Mitutoyo
- SKU:
- 197-101
Description
A bidirectionally graduated large-thimble, rapid-feed non-digital Mitutoyo micrometer head with plain ??18mm stem and heavy-duty ??8mm non-rotating spindle fitted with flat tungsten-carbide tip.Specifications
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 0 - 50 mm |
| Graduation: | 0.005 mm |
| Maximum Permissible Error J MPE: | ?5 ?m |
| Spindle end: | Flat |
| Spindle pitch: | 1 mm |
| Stem ?: | 18 mm |
| Stem: | Plain |
| Special features: | Bidirectional graduation |
| Measuring face: | Carbide tipped |
| Mass: | 300 g |
