Description

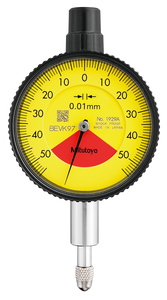

Standard Type, 5 mm Range, 0,01 mm GraduationThis is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Functions: | ISO type |
| Range: | 5 mm |
| Range per rev.: | 1 mm |
| Graduation: | 0.01 mm |
| Graduation: | 0.01 |
| Scale: | 0-100 |
| Measuring force: | 0,4-1,4 |
| MPE any 1/10 revolution: | 5 ?m |
| MPE any 1/2 revolution: | 9 ?m |
| MPE any 1 revolution: | 10 ?m |
| MPE measuring range: | 12 ?m |
| H MPE (Hysteresis): | 3 ?m |
| R MPE (Repeatability): | 3 ?m |
| Stem: | 8 mm |
| Contact point: | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Continuous dial: | Yes |
| Shockproof: | Yes |
| fu: | 3 ?m |
| Mass: | 138 g |
