Mitutoyo ABSOLUTE Solar Digimatic Indicators ID-S Series 543
- Measurement tool with a solar power source.
- Ready for use from 40 lux illumination.
- Two large function buttons improve operability.
- Mitutoyo's unique ABS (Absolute) sensor automatically restores the last origin position when the indicator is turned on. This allows quick-start operation, which is especially useful in multipoint measurement.
- A super capacitor maintains a reserve of approx. 3.5 hours under low light conditions.
- Origin-set +/- direction and inch/mm.
- Resolution: .0005"/0.01mm or .00005"/0.001mm
- Measuring Range: .5"/12.7mm
- Stem diameter: 3/8" or 8mm available.
- SPC output provided.
- Character Height: 9mm

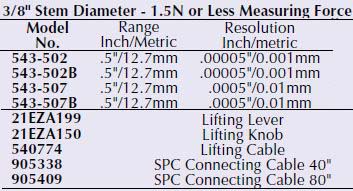

Specifications:
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 21EZA197 LIFTING KNOB
$61.20
Mitutoyo 21EZA197 Specifications
Range
1" (25.4 mm)
What's included with the Mitutoyo 21EZA197
Mitutoyo 21EZA197 Spindle Lifting Knob for the ID-C, 1"
Mitutoyo
Mitutoyo 21EZA200 LIFTING KNOB
$63.65
Description
Mitutoyo Spindle Lifting Knob (50.8mm/2").
Properties
Mitutoyo
Mitutoyo 21EZA146 LUG (INCH) FOR ID-N
$18.05
DescriptiondesSpecification For Series: ID-N, ID-B
Mitutoyo
Mitutoyo 21EZA145 LUG(MM) FOR ID-N
$18.05
DescriptiondesSpecification For Series: ID-N, ID-B
