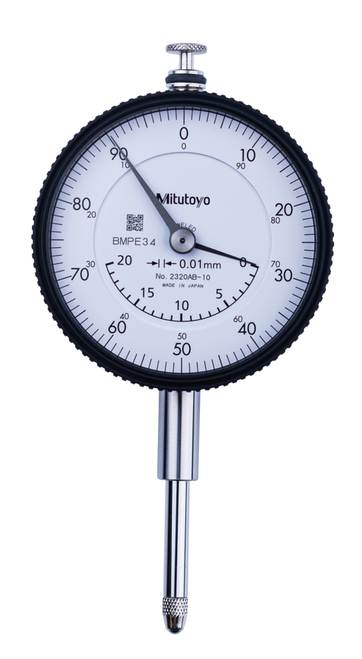

Description
Standard Type, 20 mm Range, 0,01 mm Graduation
This is a standard dial indicator. It offers you the following benefits:
- Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
- No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Range: | 20 mm |
| Range per rev.: | 1 mm |
| Graduation: | 0.01 mm |
| Scale: | 0-100 (100-0) |
| MPE any 1/10 revolution: | 6 µm |
| MPE any 1/2 revolution: | 10 µm |
| MPE any 1 revolution: | 11 µm |
| MPE measuring range: | 20 µm |
| H MPE (Hysteresis): | 4 µm |
| R MPE (Repeatability): | 3 µm |
| Measuring force: | 0,4-2 N |
| Stem: | 8 mm |
| Contact point: | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Delivered: | With certificate of inspection |
| Mass: | 150 g |
| Continuous dial: | Yes |
| Coaxial revolution counter: | Yes |
| Cushioned end point: | Yes |
| fu: | 4 µm |
| Functions: | ISO type |
